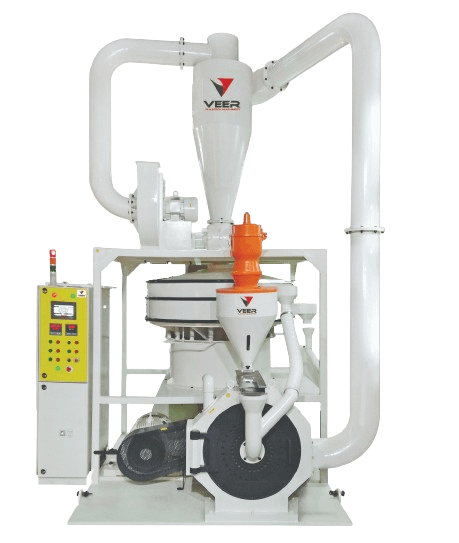

Veer Plastech Machinery (V.P.T) Pulverizer
Machine System are using for different Plastic Industries & Materials such As.
– Rotational Molding Industries
– Master batch Industries
• Pipes & Profile Industries
All Materials are Proven by VPT Pulverizer System
(HDPE, MDPE, LLDPE, LDPE, PP, PVC, PA, PS, ABS)
TECHNICAL SPECIFICATIONS:
| Scissor 300-S | Scissor 300 | Scissor 500 | Scissor 600 | |
|---|---|---|---|---|
| Disc Dia. | 300 mm | 300 mm | 500 mm | 600 mm |
| Disc Type | Segmented | Segmented | Segmented | Segmented |
| Cutting Geometry | Scissor Cut | Scissor Cut | Scissor Cut | Scissor Cut |
| Mill Motor | 22 KW (30 HP) | 29 KW (40 HP) | 44 KW (60 HP) | 56 KW (75 HP) |
| Connected load | 27kW | 34kW | 53kW | 66kW |
| Throughput | 100-150 Kg/h | 150-200 Kg/h | 300-350 Kg/h | 400-500 Kg/h |
| Dimension (L x W x H) | 1620 x 1620 x 3300 | 1650 x 1650 x 3300 | 2500 x 2500 x 3800 | 2550 x 2550 x 3800 |
Advantages:
• Energy Efficient
• Without Water Cooling
• Quality Powder with Excellence Characteristics
• Blade Gape Setting 360° Parallel
• High Throughput at Low Power Requirement
• Easy Operating System
• Temperature & Load Controlled System
• Material Feeding Auto Controlled
• Segmented Scissor cut Technology
• Free Flowing Powder with High Bulk Density
• Fully Automatic PLC Controlled (Optional)
Key Features:
- Hydraulic Operation:
- Equipped with a sophisticated hydraulic system for quick and smooth screen changes.
- Minimizes manual labor, enhancing safety and efficiency in operations.
- Plate Type Design:
- Innovative plate design offers easy access for maintenance and screen replacement.
- Space-saving and robust construction suitable for a variety of industrial settings.
- Continuous Production:
- Enables ongoing production without stopping for screen changes, perfect for high-output environments.
- Maintains consistent extrusion pressure and quality throughout the process.
- High-Quality Filtration:
- Ensures the effective removal of contaminants, resulting in superior product quality.
- Capable of handling a wide range of materials, including various polymers and plastics.
- Durable and Reliable:
- Constructed from high-grade materials to endure harsh industrial conditions.
- Designed for long-term reliability, minimizing the need for frequent maintenance.
- Easy Integration:
- Compatible with various extrusion lines and easy to install.
- Streamlined integration process ensures quick setup and minimal disruption to existing operations.
