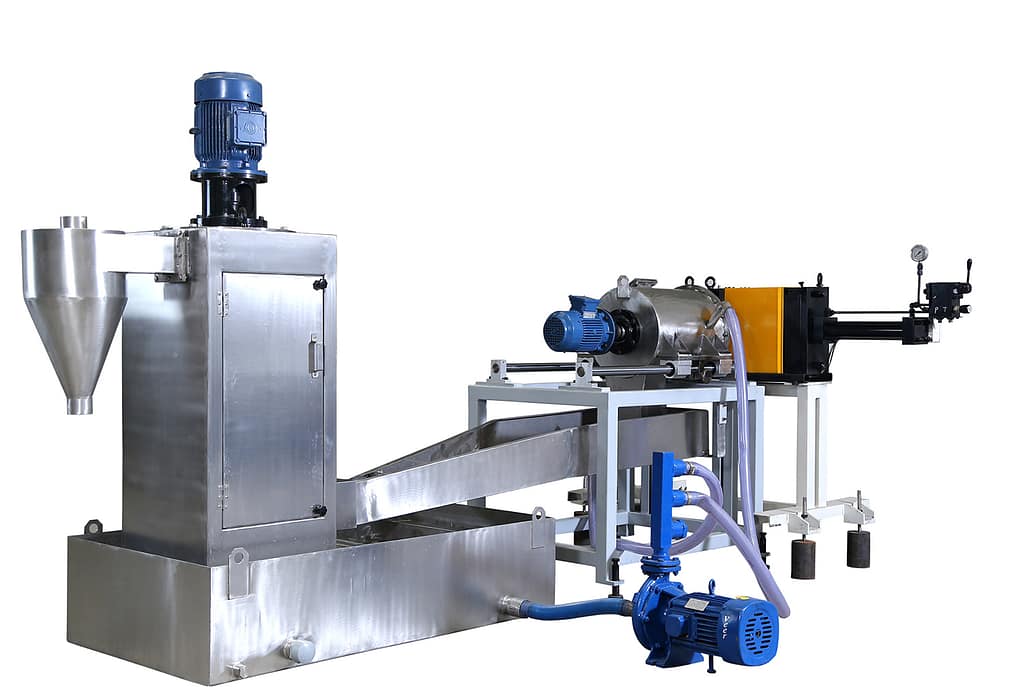

A Die Face Cutter VDFC (Vertical Die Face Cutter) machine is a specialized piece of equipment used in the plastic manufacturing industry to trim or cut the face of a die used in extrusion processes. This machine ensures that the die maintains its precision and functionality, which is crucial for producing high-quality plastic products. Here’s a detailed description of the VDFC machine:
TECHNICAL SPECIFICATIONS:
| Specification | Details |
|---|---|
| Model | VDFC-1000 |
| Cutting Mechanism | Rotary cutter or milling head with precision adjustment |
| Cutting Capacity | Up to 1000 mm diameter dies |
| Die Holder | Adjustable holder with clamping force up to 2000 kg |
| Control System | PLC with touch screen interface for parameter settings |
| Cutting Depth | Adjustable from 0.1 mm to 5 mm |
| Cutting Speed | Variable speed from 0 to 500 RPM |
| Cooling System | Integrated liquid cooling with adjustable flow rate |
| Dust and Chip Collection | High-efficiency dust extraction system |
| Safety Features | Safety guards, emergency stop button, and overload protection |
| Power Supply | 3-phase, 400V, 50Hz |
| Power Consumption | 5 kW |
| Dimensions (L x W x H) | 2000 mm x 1500 mm x 1800 mm |
| Weight | Approx. 2000 kg |
| Noise Level | Less than 75 dB(A) |
| Operating Temperature | 5°C to 40°C |
| Accessories | Tooling kit, calibration tools, and spare parts |
Applications:
- Die Cutting:
- Used in manufacturing to cut materials into specific shapes or patterns using a die.
- Commonly applied in industries such as automotive, packaging, electronics, and textiles.
- Precision Cutting:
- Ideal for tasks requiring high accuracy and repeatability.
- Used for cutting metal, plastic, and other materials.
- Prototyping:
- Helps in creating prototypes and small production runs of parts and components.
- Tool and Die Making:
- Essential for making dies, molds, and other precision tools.
- Medical Device Manufacturing:
- Utilized for creating precise components for medical devices.
Features
- High Precision:
- Equipped with advanced control systems to ensure precise cutting.
- Often includes features like laser guides or CNC (Computer Numerical Control) for accuracy.
- Durability:
- Built with robust materials to withstand heavy-duty use and maintain performance over time.
- Versatility:
- Can handle a variety of materials and thicknesses.
- Adjustable settings for different cutting requirements.
- Automated Operation:
- Many models include automation features for efficiency and consistency.
- Reduces the need for manual intervention, improving safety and productivity.
- User-Friendly Interface:
- Designed with easy-to-use controls and interfaces.
- Often includes touchscreens and software for ease of programming and operation.
- Safety Features:
- Equipped with safety guards, emergency stop buttons, and other safety mechanisms to protect operators.
- Maintenance and Support:
- Designed for easy maintenance to reduce downtime.
- Often comes with manufacturer support and service options.
