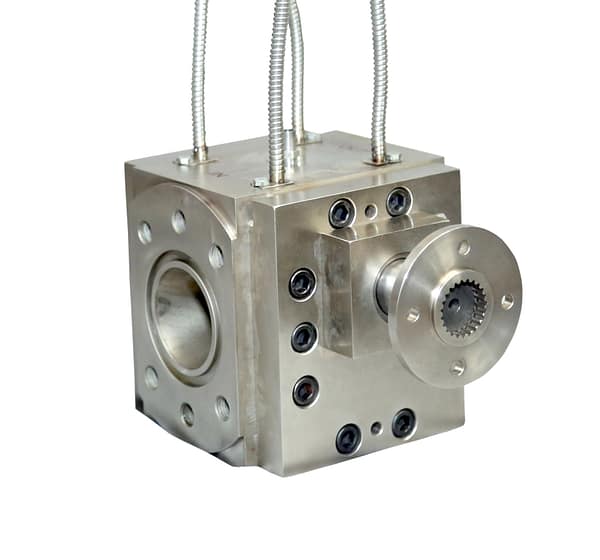

An extrusion melt pump is a crucial component in the plastic and polymer processing industry. It is used in the extrusion process to provide a steady and consistent flow of molten material, such as plastics or polymers, from the extruder to the die. This ensures that the product being extruded has uniform thickness and quality.
TECHNICAL SPECIFICATIONS:
Self Cleaning Continuous Screen Changer
| Sr. No |
Model | Output Kg/Hr | Capacity (cc/Rev.) |
Operating RPM | Heating Load (kW) | ||
|---|---|---|---|---|---|---|---|
| Max | Min | Min | Max | ||||
| 1 | VMP-22 | 5 | 24 | 4.5 | 27 | 120 | 0.4 |
| 2 | VMP-28 | 11 | 51 | 10 | 25 | 115 | 0.8 |
| 3 | VMP-36 | 28 | 119 | 25 | 25 | 105 | 1.2 |
| 4 | VMP-45 | 51 | 198 | 46 | 25 | 96 | 2.0 |
| 5 | VMP-56 | 90 | 363 | 92 | 22 | 88 | 3.6 |
| 6 | VMP-70 | 153 | 615 | 171 | 20 | 80 | 4.8 |
| 7 | VMP-90 | 298 | 1195 | 369 | 18 | 72 | 8.0 |
Applications:
VPT-Melt Pumps are compact and give extraordinary result in this type of Polymers Materials Such As PS, PET, PC, PA, PMMA, HDPE, LDPE, LLDPE, PP, PVC
Key Features:
- Hydraulic Operation:
- Equipped with a sophisticated hydraulic system for quick and smooth screen changes.
- Minimizes manual labor, enhancing safety and efficiency in operations.
- Plate Type Design:
- Innovative plate design offers easy access for maintenance and screen replacement.
- Space-saving and robust construction suitable for a variety of industrial settings.
- Continuous Production:
- Enables ongoing production without stopping for screen changes, perfect for high-output environments.
- Maintains consistent extrusion pressure and quality throughout the process.
- High-Quality Filtration:
- Ensures the effective removal of contaminants, resulting in superior product quality.
- Capable of handling a wide range of materials, including various polymers and plastics.
- Durable and Reliable:
- Constructed from high-grade materials to endure harsh industrial conditions.
- Designed for long-term reliability, minimizing the need for frequent maintenance.
- Easy Integration:
- Compatible with various extrusion lines and easy to install.
- Streamlined integration process ensures quick setup and minimal disruption to existing operations.
