TECHNICAL SPECIFICATIONS:

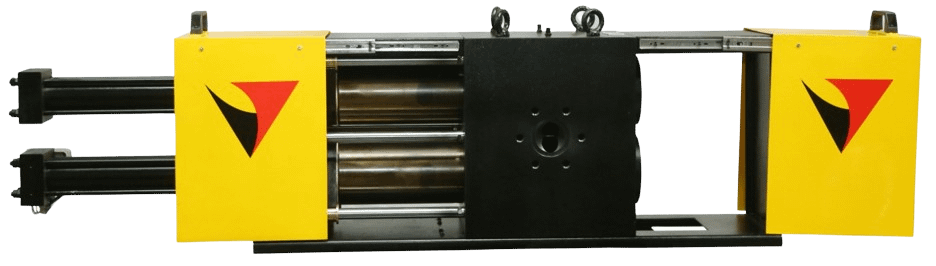

DOUBLE PLUNGER CONTINOUS HYDRAULIC SCREEN CHANGER
| Model No | Output (kg/hr.) |
Screen Mesh Dia (mm) |
Cartridge Heater Voltage |
Heating Load (Kw) |
Hyd. Powerpack Motor (hp)/Kw |
Total Connecting Load (Kw) |
|---|---|---|---|---|---|---|
| VPT-100 | <500 | Ø105 | 230/415 | 9.6 | 5 HP/3.7 | 13.3 |
| VPT-120 | <750 | Ø125 | 230/415 | 16.8 | 5 HP/3.7 | 20.8 |
| VPT-150 | <1250 | Ø155 | 230/415 | 19.2 | 7.5 HP/5.5 | 24.7 |
| VPT-180 | <1400 | Ø185 | 230/415 | 27 | 7.5 HP/5.5 | 32.5 |
| VPT-200 | <1800 | Ø205 | 230/415 | 36 | 10 HP/7.5 | 43.5 |
Salient Feature:
• VIABLE SOLUTION FOR DOUBLE PLUNGER CONTINOUS SCREEN
CHANGER MONO / MULTI CAVITY, WE HAVE FOUND SUCCESSFUL, VIABLE,PREPOTITION FOR
MODEL – VEERA 2 CAVITY AND 4 CAVITY
• THIS SCREEN CHANGER ARE
VERIABLLY SUPPLIED TO VARIOUS OEM & OTHER CUSTOMERS FOR LOCAL & EXPORT MARKETS
WHERE, THESE ARE RUNNING AFFICIANTLY & SUCCESSFULLY TO THE ENTIRE SATISFACTION OF OUR CUSTOMERS, MADE WITH SUITABLE ALLOYS HARDENED
& NITRIDING STEEL & DESIRD METALS.
Advantage:
• VERY SPECIAL SEALING LEAK PROOF
SYSTEMS ENSURES SMOOTH OPERATION
•SEAL – LESS DESIGN
•EQUIPPED WITH CONCEALED WIRING,
SAFE GUARDING & PROTECTION
• HIGH TEMPRETURE RESISTANCE PAINTING ON MACHINE UP TO ABOUT 400 DEGREES.
• HEAVY DUTY SPCIALLY DESIGNED HYDRAULIC CYLINDER WITH SELF
ALLIGNMENT SYSTEMS
• MACHINE MOUNT ON HEAVY BASE FRAM.
Key Features:
- Hydraulic Operation:
- Equipped with a sophisticated hydraulic system for quick and smooth screen changes.
- Minimizes manual labor, enhancing safety and efficiency in operations.
- Plate Type Design:
- Innovative plate design offers easy access for maintenance and screen replacement.
- Space-saving and robust construction suitable for a variety of industrial settings.
- Continuous Production:
- Enables ongoing production without stopping for screen changes, perfect for high-output environments.
- Maintains consistent extrusion pressure and quality throughout the process.
- High-Quality Filtration:
- Ensures the effective removal of contaminants, resulting in superior product quality.
- Capable of handling a wide range of materials, including various polymers and plastics.
- Durable and Reliable:
- Constructed from high-grade materials to endure harsh industrial conditions.
- Designed for long-term reliability, minimizing the need for frequent maintenance.
- Easy Integration:
- Compatible with various extrusion lines and easy to install.
- Streamlined integration process ensures quick setup and minimal disruption to existing operations.
